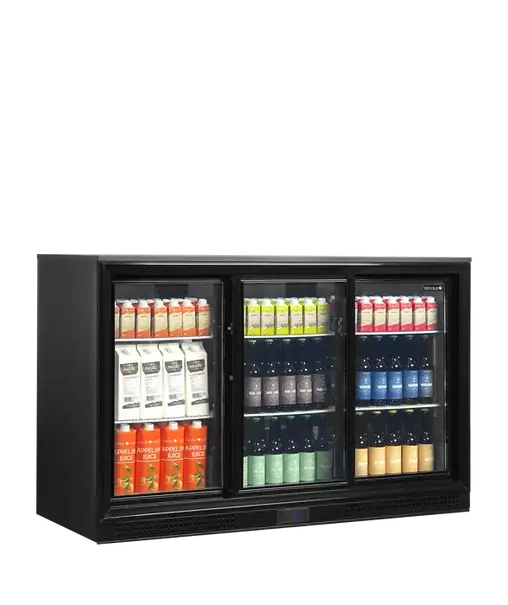

DB301S-3

Backbar Cooler

FEATURES

TEFCOLD-DENMARK

Approx. 56% more energy efficient than previous DB-range

Double glazed tempered glass

Energy saving variable speed compressor

Ventilated cooling for fast pull-down and even temperature

Easy access electronic thermostat

Adjustable shelves

LED interior light

DESCRIPTION

Technical specifications

Measures and Content

  • Temperature Range+2 to +10 °C

  • Climate Class4

  • Gross / Net Weight95 / 88 kg

  • Gross / Net Volume300 / 278 l

  • Cans 330 ml380 pcs

  • Cans 500 ml266 pcs

  • Bottles 330 ml218 pcs

  • Bottles 500 ml PET218 pcs

  • Total Display Area0.72 m²

Design and Material

  • Feet / Legs4 adjustable feet

  • Exterior FinishBlack

  • Interior FinishStucco aluminium

  • Interior LightLED

  • Lock

  • Door No & Type3 sliding glass doors

  • Door ReversibleNo

  • Shelves No & Type6 wire shelves white

  • Shelf ColorWhite

  • Shelf Dimensions395x320 mm / 432x320mm

  • Max load on Shelves196 kg/m²

Cooling and Functions

  • Type of ControllerElectronic

  • Type of CoolingVentilated

  • Type of DefrostAutomatic

  • RefrigerantR600a

  • Refrigerant Charge90 g

  • Thermometer

Power and Consumption

  • Energy ClassB

  • Max Ambient30°C at 55% RH

  • Energy Consumption1.74 kWh/24h

  • Annual Energy Cons.635 kWh/year

  • Input Power125 W

  • Voltage / Frequency220-240/50 V/Hz

  • Noise Level44 dB(A)

Dimensions

  • Internal Dimension (WxDxH)1265 x 418 x 720 mm

  • External Dimension (WxDxH)1350 x 526 x 870 mm
