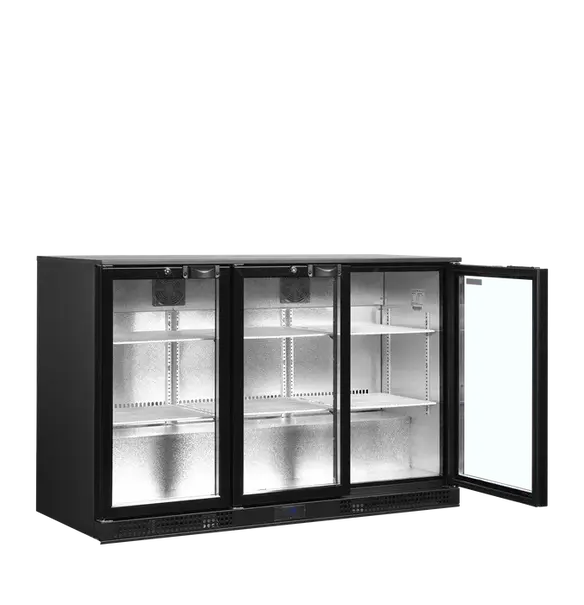

DB301H-3

Backbar Cooler

FEATURES

TEFCOLD-DENMARK

Approx. 56% more energy efficient than previous DB-range

Double glazed tempered glass

Energy saving variable speed compressor

Ventilated cooling for fast pull-down and even temperature

Easy access electronic thermostat

Adjustable shelves

LED interior light

DESCRIPTION

Measures and Content

Temperature Range+2 to +10 °C

Climate Class4

Gross / Net Weight95 / 88 kg

Gross / Net Volume300 / 278 l

Cans 330 ml380 pcs

Cans 500 ml266 pcs

Bottles 330 ml218 pcs

Bottles 500 ml PET218 pcs

Total Display Area0.75 m²

Design and Material

Feet / Legs4 adjustable feet

Exterior FinishBlack

Interior FinishStucco aluminium

Interior LightLED

Lock

Door No & Type3 hinged glass doors

Door ReversibleNo

Shelves No & Type6 wire shelves white

Shelf ColorWhite

Shelf Dimensions395x320 mm / 432x320mm

Max load on Shelves196 kg/m²

Cooling and Functions

Type of ControllerElectronic

Type of CoolingVentilated

Type of DefrostAutomatic

RefrigerantR600a

Refrigerant Charge90 g

Thermometer

Power and Consumption

Energy ClassB

Max Ambient30°C at 55% RH

Energy Consumption1.8 kWh/24h

Annual Energy Cons.657 kWh/year

Input Power125 W

Voltage / Frequency220-240/50 V/Hz

Noise Level44 dB(A)

Dimensions

Internal Dimension (WxDxH)1265 x 418 x 720 mm

External Dimension (WxDxH)1350 x 520 x 870 mm
