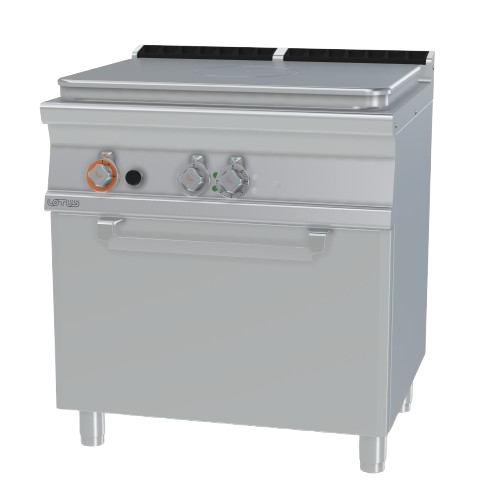

TPF-78GE
Gas Solid Top on Electric Traditional or Fan Oven TPF-78GE
FEATURES
LOTUS - Italy
Fabricated using CrNi 18/10 AISI 304 grade Stainless Steel Scotch-Brite Satin polish Finish, incorporating 2 mm thick worktop, rounded edges, chromed details and rear splash back.
Knobs with waterproof grades IPX5.
All serviceable parts are accessible by the easy removal of front control panel and removable collectors.
Appliance is supplied with LPG Gas.
Adjustable feet.
Available versions:
Professional Gas Solid Top with Traditional Electric Oven (TPF-78GE / TPF-98GE).
Gas Solid Top
Traditional Electric Oven
1 Grid - GN 2/1
GN 2/1 oven equipped with wide doors and timers.
Piezoelectric ignition with pilot light, 15mm thick steel top for the best in heat conductivity including thermocouple safety valves.
Burners with ignition by pilot light, taps with thermocouple safety valve.
2. Professional Gas Solid Top with Electric Fan Oven (TPFV-78GE / TPFV-98GE).
Gas Solid Top
Electric Fan Oven
1 Grid - GN 1/1
GN 1/1 oven equipped with wide doors and timers.
Piezoelectric ignition with pilot light, 15mm thick steel top for the best in heat conductivity including thermocouple safety valves.
Burners with ignition by pilot light, taps with thermocouple safety valve.
DESCRIPTION
TPF-78GE
Dimensions (WxDxH) (cm): 80x70.5x90
Oven Dimensions (WxDxH) (cm): 67x55x34
Oven Temperature: 50÷300°C
Grid (WxD) (cm): 65x53 - GN 2/1
Plate (WxD) (cm): 77x57
Gas Power: 12 KW - 10.320 KCAL/H
Electric Power (Kw): 5
Rated Voltage (V): 400V~3N
Frequency (Hz): 50/60
Weight (kg): 170
TPF-98GE
Dimensions (WxDxH) (cm): 80x90x90
Plate Dimensions (WxDxH) (cm): 79x73
Oven Dimensions (WxDxH) (cm): 67x73x34
Grid (WxD) (cm): 65x71
Oven Temperature: 50÷300°C
Gas Power: 12 KW - 10.320 KCAL/H
Electric Power (Kw): 6.7
Rated Voltage (V): 400V~3N
Frequency (Hz): 50/60
Weight (kg): 196
TPFV-78GE
Dimensions (WxDxH) (cm): 80x70.5x90
Oven Dimensions (WxDxH) (cm): 55x36x34
Oven Temperature: 50÷300°C
Grid (WxD) (cm): 53x32.5 - GN 1/1
Plate (WxD) (cm): 77x57
Gas Power: 12 KW - 10.320 KCAL/H
Electric Power (Kw): 5.32
Rated Voltage (V): 400V~3N
Frequency (Hz): 50/60
Weight (kg): 170
TPFV-98GE
Dimensions (WxDxH) (cm): 80x90x90
Plate Dimensions (WxDxH) (cm): 79x73
Oven Dimensions (WxDxH) (cm): 55x36x34
Grid (WxD) (cm): 53x32.5
Oven Temperature: 50÷300°C
Gas Power: 12 KW - 10.320 KCAL/H
Electric Power (Kw): 5.32
Rated Voltage (V): 400V~3N / 230V~3
Frequency (Hz): 50/60
Weight (kg): 196
