PL-N

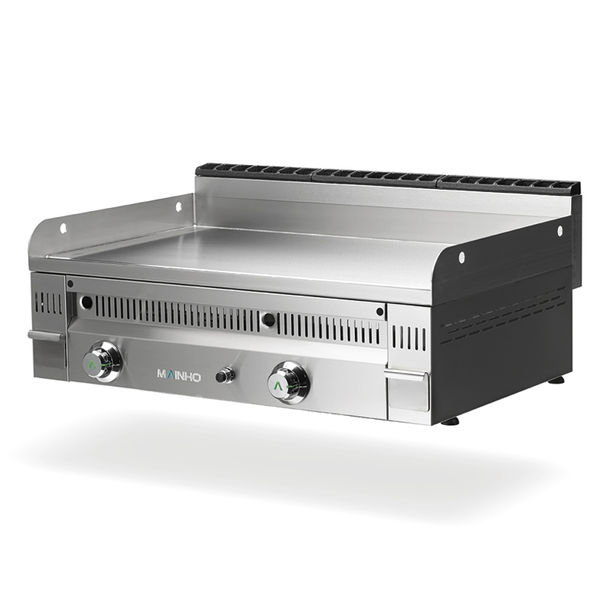

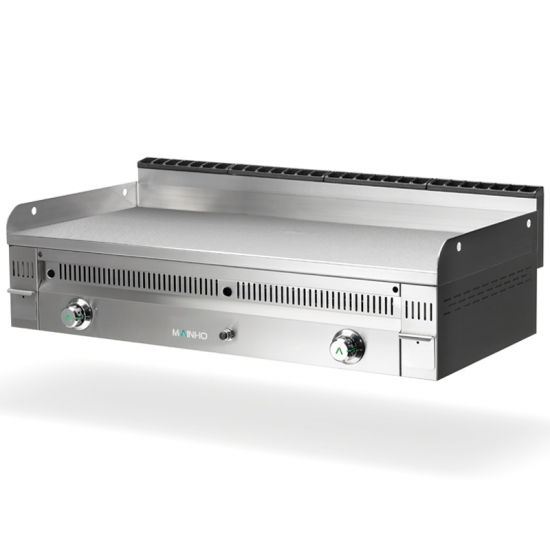

Fry Top Serie Euro Snack PL-N
FEATURES
MAINHO - Spain
Rectified steel plate 20 mm thick.
Fat collection drawers on both sides.
Gas
Ignition by sparks to battery.
EURO-SIT thermocouple valves with pilot light.
Electric
Stainless steel shielded heating elements.
Three-phase 400V~3N 50/60Hz
Type of Plates:
Smooth
Half-slotted
Slotted
DESCRIPTION
Gas
PL-60 N
Dimensions (WxDxH) (cm): 61x60x25
Cooking Surface (WxD): 60x50
Power: 11 kw / 9460 kcal/h
Weight (kg): 72
PL-90 N
Dimensions (WxDxH) (cm): 91x60x25
Cooking Surface (WxD): 90x50
Power: 19 kw / 16340 kcal/h
Weight (kg): 105
PL-120 N
Dimensions (WxDxH) (cm): 121x60x25
Cooking Surface (WxD): 120x50
Power: 22 kw / 18820 kcal/h
Weight (kg): 135
Electric
PL-60ET
Dimensions (WxDxH) (cm): 61x60x25
Cooking Surface (WxD): 60x50
Power: 6 kw
Weight (kg): 72
PL-90ET
Dimensions (WxDxH) (cm): 91x60x25
Cooking Surface (WxD): 90x50
Power: 9 kw
Weight (kg): 105
PL-120ET
Dimensions (WxDxH) (cm): 121x60x25
Cooking Surface (WxD): 120x50
Power: 12 kw
Weight (kg): 135
