M 90

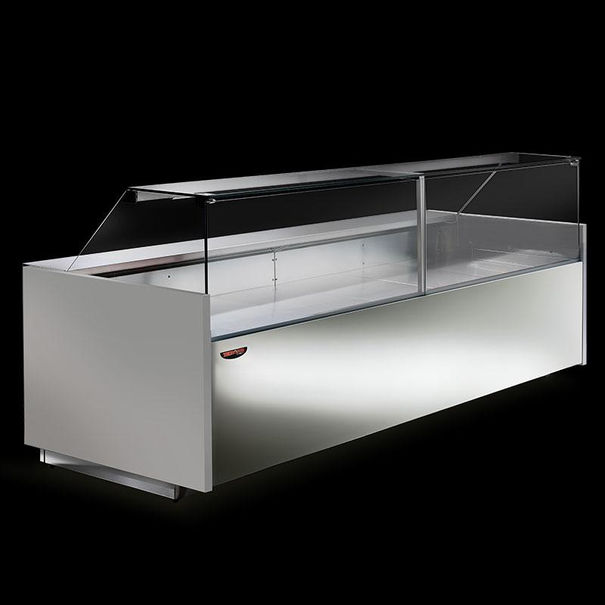

Refrigerated Display M 90

FEATURES

TECNODOMspa - Italy

  • Technology, design and production “Made in Italy”

  • Medium size (1000 mm depth)

  • Ideal for placing in medium-sized stores

  • Low energy consumption and low enviromental impact

  • Extra clear quality glass

  • Anti-fog glass system with hot air

  • Without refrigerated storage

  • White prepainted sheet metal tank (suitable for food contact) with high-pressure injected CFCs-free polyurethane insulation (density 40 Kg / m³)

  • Multiplexable

  • Easy installation, ready to use

  • Thermoformed and insulated side walls high (A) or low (B) (40 mm thick each).

  • Tempered side glass pre arranged for intermediate shelf.

  • Electronic control panel.

  • Led ceiling light.

  • Stainless steel working top.

  • Stainless steel display surface with liquids recovery system.

  • Automatic evaporating water tray with floating element (CG).

  • Off-cycle defrosting.

  • Baffle glass

DESCRIPTION

AVAILABLE VERSIONS

  1. Curved tempered glasses(VC)

  2. With curved tempered glasses that can be lifted with pistons (VCP)

  3. Flat tempered glasses (VD)

  4. With flat tempered glasses that can be lifted with pistons (VDP)

  5. With high front (A) and high insulated sides (thickness 40 mm)

  6. With low front (B) and low insulated sides (thickness 40 mm)

  7. With built-in group.(CG)

  8. Without group (SG)

  9. Neutral (N)

  • R290 (on request)

  • Suitable for meat, pre-packed meat, gastronomy, dairy products, cured meats, snacks.

  • Standard side walls in grey colour.

  • Variety of colours available for the front panel.

Available lengths (mm): 1040, 1330, 1520, 1955, 2000, 2480, 2946, 3830

Depth (mm): 1000

Height (mm): 1232 (VC), 1243 (VCP), 1197 (VD), 1200 (VDP)

Operating Temperature: +2° ~ +5°C

Typology of Refrigeration: Ventilated
