HCEGPR8
Static Refrigerated Top
FEATURES
EMAINOX - Italy
Top H = 50 mm made of stainless steel AISI 304, th. 12/10 with rounded edges
Top with pressed inset for an easy cleaning
Contact cooling refrigeration through contact coils under the top
Insulation by high density expanded polyurethane without C.F.C. and H.C.F.C.
Refrigerated cabinet with hinged doors complete with GN 1/1 guides
With condensing unit
Condensed water drain on bottom
Independently managed temperature and defrost of the top and the cabinet by digital programmable thermostats
Automatic defrosting
Available versions:

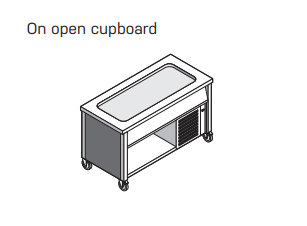

On Open Cupboard
On Neutral Cupboard with hinged doors
On Refrigerated Cupboard with hinged doors
DESCRIPTION
2 GN 1/1
External Dimensions (WxDxH) (mm): 800x700x900
Open cupboard Dimensions (WxDxH) (mm): 200x590x420
Open cupboard capacity (Lt): 50
Top Dimensions (WxDxH) (mm): 630x510x20
Top temperature (°C): -10/-3
Refrigerant gas: R290
Open/neutral cupboard cooling power at -20°C (W): 240
Open/neutral cupboard total power (kw): 0.2
Supply voltage (50Hz): 230V 1F+N
3 GN 1/1
External Dimensions (WxDxH) (mm): 1200x700x900
Open cupboard Dimensions (WxDxH) (mm): 600x590x420
Refrigerated cupboard Dimensions (WxDxH) (mm): 500x540x350
Open cupboard capacity (Lt): 148
Refrigerated cupboard capacity (Lt): 90
N. of doors: 1
Top Dimensions (WxDxH) (mm): 960x510x20
Top temperature (°C): -10/-3
Refrigerated cupboard temperature (°C): +2/+10
Refrigerant gas: R290
Open/neutral cupboard cooling power at -20°C (W): 240
Refrigerated cupboard cooling power at -20°C (W): 460
Open/neutral cupboard total power (kw): 0.2
Refrigerated cupboard total power (kw): 0.5
Supply voltage (50Hz): 230V 1F+N
4 GN 1/1
External Dimensions (WxDxH) (mm): 1500x700x900
Open cupboard Dimensions (WxDxH) (mm): 900x590x420
Refrigerated cupboard Dimensions (WxDxH) (mm): 800x540x350
Open cupboard capacity (Lt): 223
Refrigerated cupboard capacity (Lt): 151
N. of doors: 2
Top Dimensions (WxDxH) (mm): 1280x510x20
Top temperature (°C): -10/-3
Refrigerated cupboard temperature (°C): +2/+10
Refrigerant gas: R290
Open/neutral cupboard cooling power at -20°C (W): 300
Refrigerated cupboard cooling power at -20°C (W): 460
Open/neutral cupboard total power (kw): 0.3
Refrigerated cupboard total power (kw): 0.5
Supply voltage (50Hz): 230V 1F+N
5 GN 1/1
External Dimensions (WxDxH) (mm): 1900x700x900
Open cupboard Dimensions (WxDxH) (mm): 900x590x420
Refrigerated cupboard Dimensions (WxDxH) (mm): 800x540x350
Open cupboard capacity (Lt): 223
Refrigerated cupboard capacity (Lt): 151
N. of doors: 3
Top Dimensions (WxDxH) (mm): 1600x510x20
Top temperature (°C): -10/-3
Refrigerated cupboard temperature (°C): +2/+10
Refrigerant gas: R290
Open/neutral cupboard cooling power at -20°C (W): 333
Refrigerated cupboard cooling power at -20°C (W): 630
Open/neutral cupboard total power (kw): 0.3
Refrigerated cupboard total power (kw): 0.6
Supply voltage (50Hz): 230V 1F+N
6 GN 1/1
External Dimensions (WxDxH) (mm): 2300x700x900
Open cupboard Dimensions (WxDxH) (mm): 1350x590x420
Refrigerated cupboard Dimensions (WxDxH) (mm): 1255x540x350
Open cupboard capacity (Lt): 334
Refrigerated cupboard capacity (Lt): 237
N. of doors: 3
Top Dimensions (WxDxH) (mm): 1930x510x20
Top temperature (°C): -10/-3
Refrigerated cupboard temperature (°C): +2/+10
Refrigerant gas: R290
Open/neutral cupboard cooling power at -20°C (W): 460
Refrigerated cupboard cooling power at -20°C (W): 715
Open/neutral cupboard total power (kw): 0.4
Refrigerated cupboard total power (kw): 0.7
Supply voltage (50Hz): 230V 1F+N
