CBEGVR8
Static Refrigerated Tank
FEATURES
EMAINOX - Italy
Top H=50 mm made of stainless steel AISI 304, th. 12/10
Welded and rounded tank for a better cleaning
Tank suitable for GN containers max. H = 200 mm
Contact cooling refrigeration through contact coils under the tank
Insulation by high density expanded polyurethane without C.F.C. and H.C.F.C.
Refrigerated cabinet with drawers
With condensing unit. Defrost is performed through stop of the compressor
Condensed water drain on bottom (evaporation kit on request)
Independently managed temperature and defrost of the tank and the cabinet by digital programmable thermostats
Available versions:
On Open Cupboard

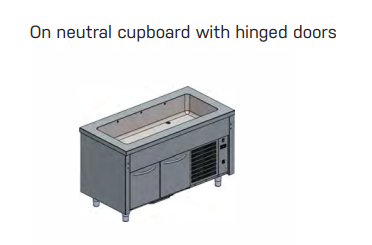

On Neutral Cupboard with hinged doors
On Refrigerated Cupboard with drawers
DESCRIPTION
2 GN 1/1
External Dimensions (WxDxH) (mm): 850x750x900
Well Dimensions (WxDxH) (mm): 630x510x210
Well temperature (°C): +4/+10
Refrigerant gas: R290
Open/neutral cupboard cooling power at -20°C (W): 238
Open/neutral cupboard total power (kw): 0.2
Supply voltage (50Hz): 230V 1F+N
3 GN 1/1
External Dimensions (WxDxH) (mm): 1200x750x900
Open/neutral cupboard Dimensions (WxDxH) (mm): 540x580x400
Refrigerated cupboard: 1 GN 1/1
Open/neutral cupboard capacity (Lt): 125
Refrigerated cupboard capacity: 1 GN 1/1 H200 mm
N. of doors (neutral cupboard version): 1
N. of drawers (Refrigerated cupboard version): 1
Well Dimensions (WxDxH) (mm): 960x510x210
Well temperature (°C): +4/+10
Refrigerated cupboard temperature (°C): +2/+10
Refrigerant gas: R290
Open/neutral cupboard cooling power at -20°C (W): 238
Refrigerated cupboard cooling power at -20°C (W): 457
Open/neutral cupboard total power (kw): 0.2
Refrigerated cupboard total power (kw): 0.4
Supply voltage (50Hz): 230V 1F+N
4 GN 1/1
External Dimensions (WxDxH) (mm): 1500x750x900
Open/neutral cupboard Dimensions (WxDxH) (mm): 840x580x400
Refrigerated cupboard: 2 GN 1/1
Open/neutral cupboard capacity (Lt): 195
Refrigerated cupboard capacity: 2 GN 1/1 H200 mm
N. of doors (neutral cupboard version): 2
N. of drawers (Refrigerated cupboard version): 2
Well Dimensions (WxDxH) (mm): 1280x510x210
Well temperature (°C): +4/+10
Refrigerated cupboard temperature (°C): +2/+10
Refrigerant gas: R290
Open/neutral cupboard cooling power at -20°C (W): 300
Refrigerated cupboard cooling power at -20°C (W): 457
Open/neutral cupboard total power (kw): 0.25
Refrigerated cupboard total power (kw): 0.4
Supply voltage (50Hz): 230V 1F+N
5 GN 1/1
External Dimensions (WxDxH) (mm): 1900x750x900
Open/neutral cupboard Dimensions (WxDxH) (mm): 1240x580x400
Refrigerated cupboard: 2 GN 1/1
Open/neutral cupboard capacity (Lt): 288
Refrigerated cupboard capacity: 2 GN 1/1 H200 mm
N. of doors (neutral cupboard version): 3
N. of drawers (Refrigerated cupboard version): 2
Well Dimensions (WxDxH) (mm): 1605x510x210
Well temperature (°C): +4/+10
Refrigerated cupboard temperature (°C): +2/+10
Refrigerant gas: R290
Open/neutral cupboard cooling power at -20°C (W): 333
Refrigerated cupboard cooling power at -20°C (W): 636
Open/neutral cupboard total power (kw): 0.3
Refrigerated cupboard total power (kw): 0.55
Supply voltage (50Hz): 230V 1F+N
6 GN 1/1
External Dimensions (WxDxH) (mm): 2200x750x900
Open/neutral cupboard Dimensions (WxDxH) (mm): 1540x580x400
Refrigerated cupboard: 3 GN 1/1
Open/neutral cupboard capacity (Lt): 357
Refrigerated cupboard capacity: 3 GN 1/1 H200 mm
N. of doors (neutral cupboard version): 3
N. of drawers (Refrigerated cupboard version): 3
Well Dimensions (WxDxH) (mm): 1930x510x210
Well temperature (°C): +4/+10
Refrigerated cupboard temperature (°C): +2/+10
Refrigerant gas: R290
Open/neutral cupboard cooling power at -20°C (W): 457
Refrigerated cupboard cooling power at -20°C (W): 716
Open/neutral cupboard total power (kw): 0.4
Refrigerated cupboard total power (kw): 0.66
Supply voltage (50Hz): 230V 1F+N
