8HCVTR15

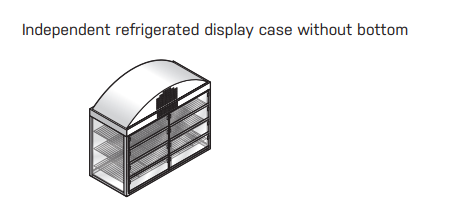

Independent Refrigerated Display Case
FEATURES
EMAINOX - Italy
Stainless steel frame AISI 304
Display case with 3 stainless steel grid shelves (glass shelves for model with curtain)
Refrigeration by ventilated evaporators on the ceiling
Polycarbonate flap doors or curtain on client side, sliding doors on operator side
Integrated condensing unit
Automatic evaporation of condensed water
LED Lighting
Digital control system for temperature adjustment and defrosting
DESCRIPTION
4 GN 1/1
External Dimensions (WxDxH) (mm): 1410x730x1150
Shelves: 3
Display temperature (°C): +4/+12
Flaps on customer side: 4+4
Sliding doors on operator side: 2
Refrigerant gas: R290
Cooling power at -10°C (W): 1100
Total power (kw): 0.6
Supply voltage (50Hz): 230V 1F+N
6 GN 1/1
External Dimensions (WxDxH) (mm): 2160x730x1150
Shelves: 3
Display temperature (°C): +4/+12
Flaps on customer side: 4+4+4
Sliding doors on operator side: 3
Refrigerant gas: R290
Cooling power at -10°C (W): 2000
Total power (kw): 1.1
Supply voltage (50Hz): 230V 1F+N
